2TC JACK
-
Ergonomically designed handle for operator comfort.
-
Lift and turn lowering system prevents unintentional lowering.
-
Min. Height 80 mm.
-
Max. Height 500 mm.
-
Low entry height.
-
Quick approach foot pedal.
-
Built-in safety lowering control valve for safe lowering even under maximum load. Built-in pressure relief valve prevents overloading.
-

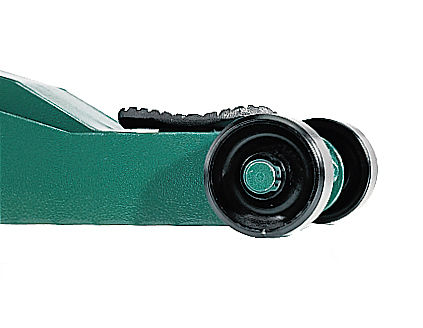

Noise reducing nylon wheels.
-
Heavy duty fully welded structure in high quality steel.
Dimension drawing
Measurement A 80mm
Measurement B 500mm
Measurement C 730mm
Measurement D 160mm
Measurement E 380mm
Measurement F 925mm
2TC 77 JACK
-
Extremely low and long reach chassis.
-
Ultra low entry height only 77 mm.
-
Long reach chassis improves acces to lifting points deep under vehicles.
-
Quick approach foot pedal.
-
Ergonomically designed handle for operator comfort.
-
Max. height 480 mm.
Dimension drawing
Measurement A 77mm
Measurement B 480mm
Measurement C 950mm
Measurement D 126mm
Measurement E 380mm
Measurement F 925mm
3TC JACK
-
Long reach chassis improves acces to lifting points deep under most vehicles.
-
Ergonomically designed handle for operator comfort.
-
Lift and turn lowering system prevents unintentional lowering.
-
Quick approach foot pedal.
-
Built-in safety lowering control valve for safe lowering even under maximum load.
-
Built-in pressure relief valve prevents overloading.
-
Heavy duty fully welded structure in high quality steel.
-
Max. height 500 mm.
-
Noise reducing nylon wheels.
Dimension drawing
Measurement A 115mm
Measurement B 500mm
Measurement C 1015mm
Measurement D 170mm
Measurement E 380mm
Measurement F 925mm
